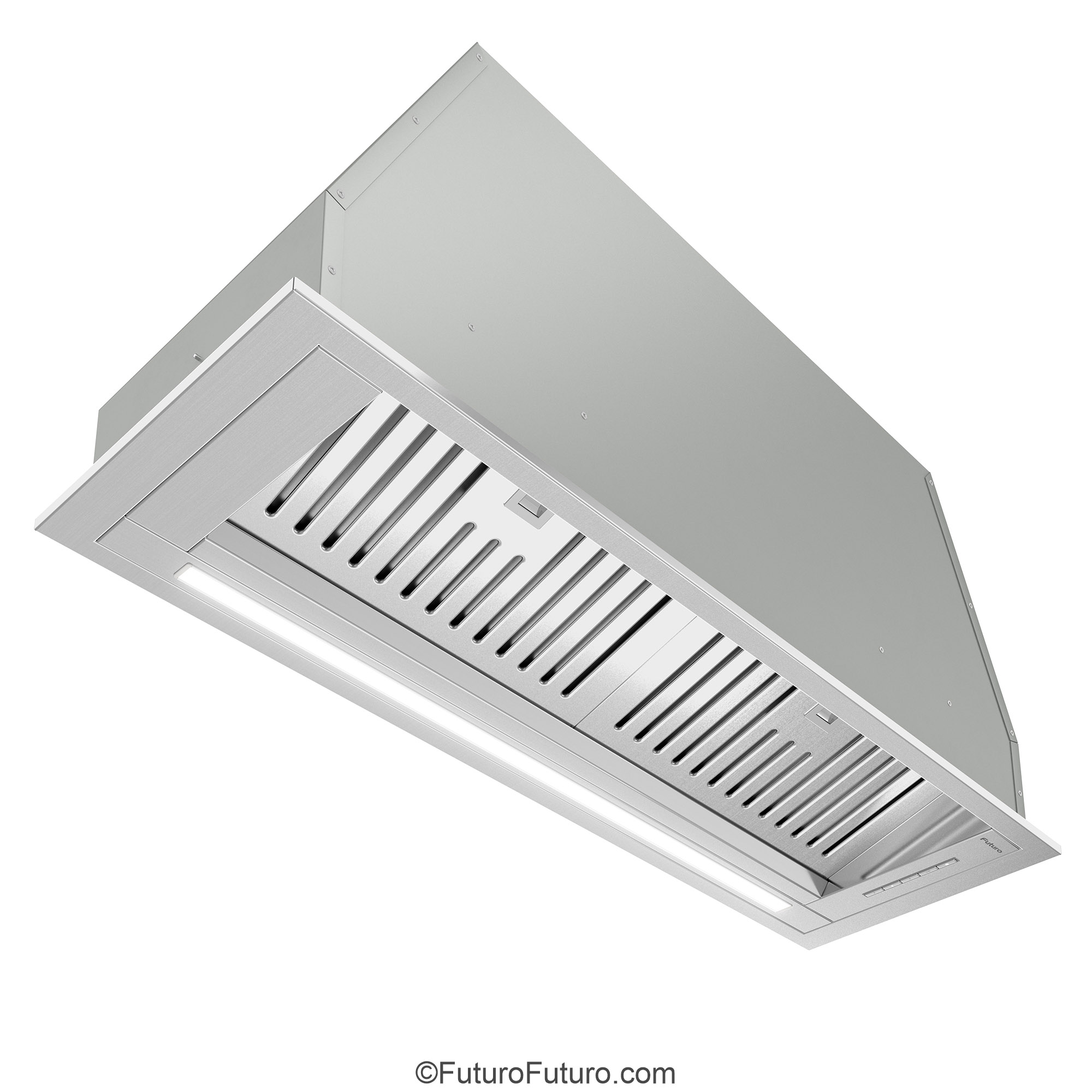

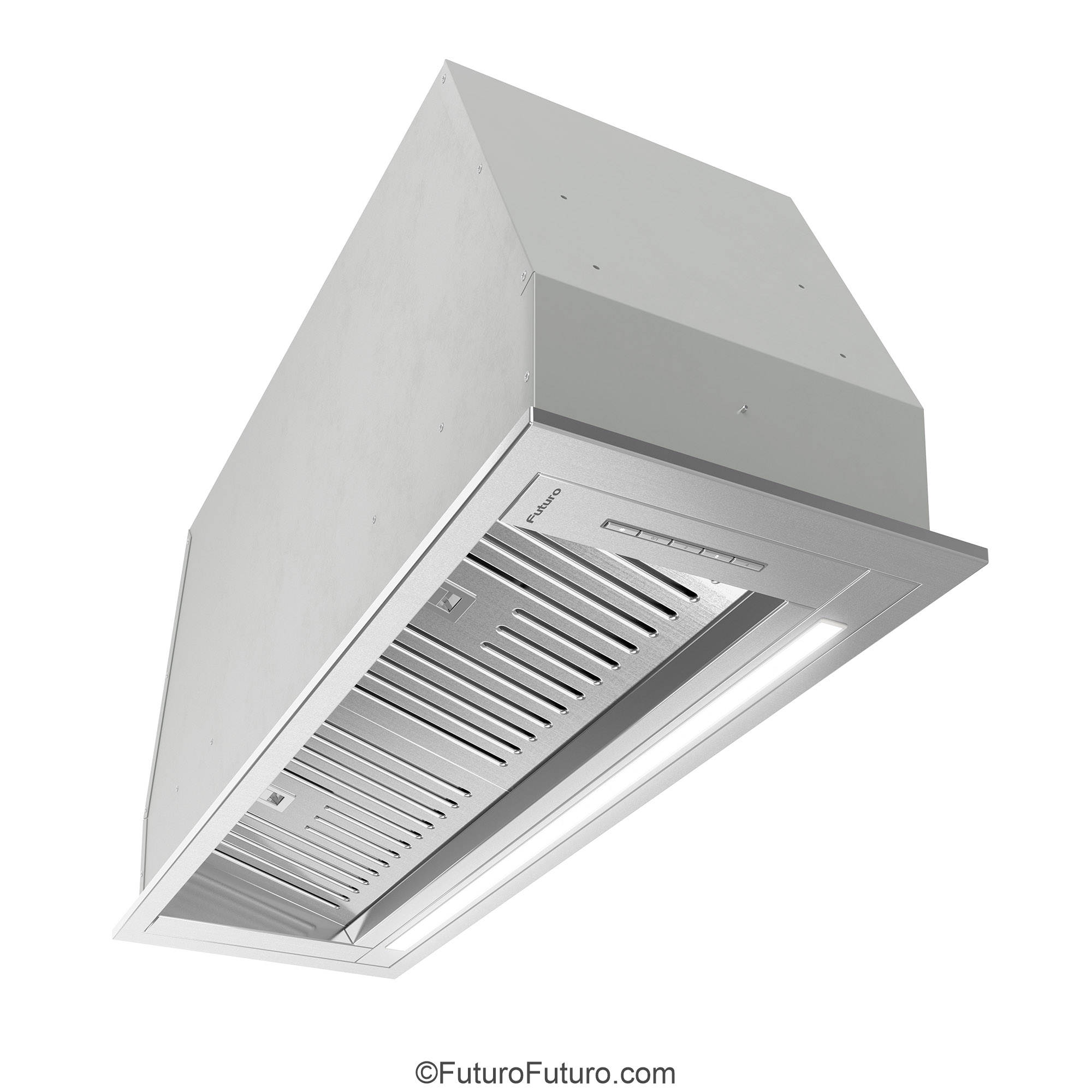

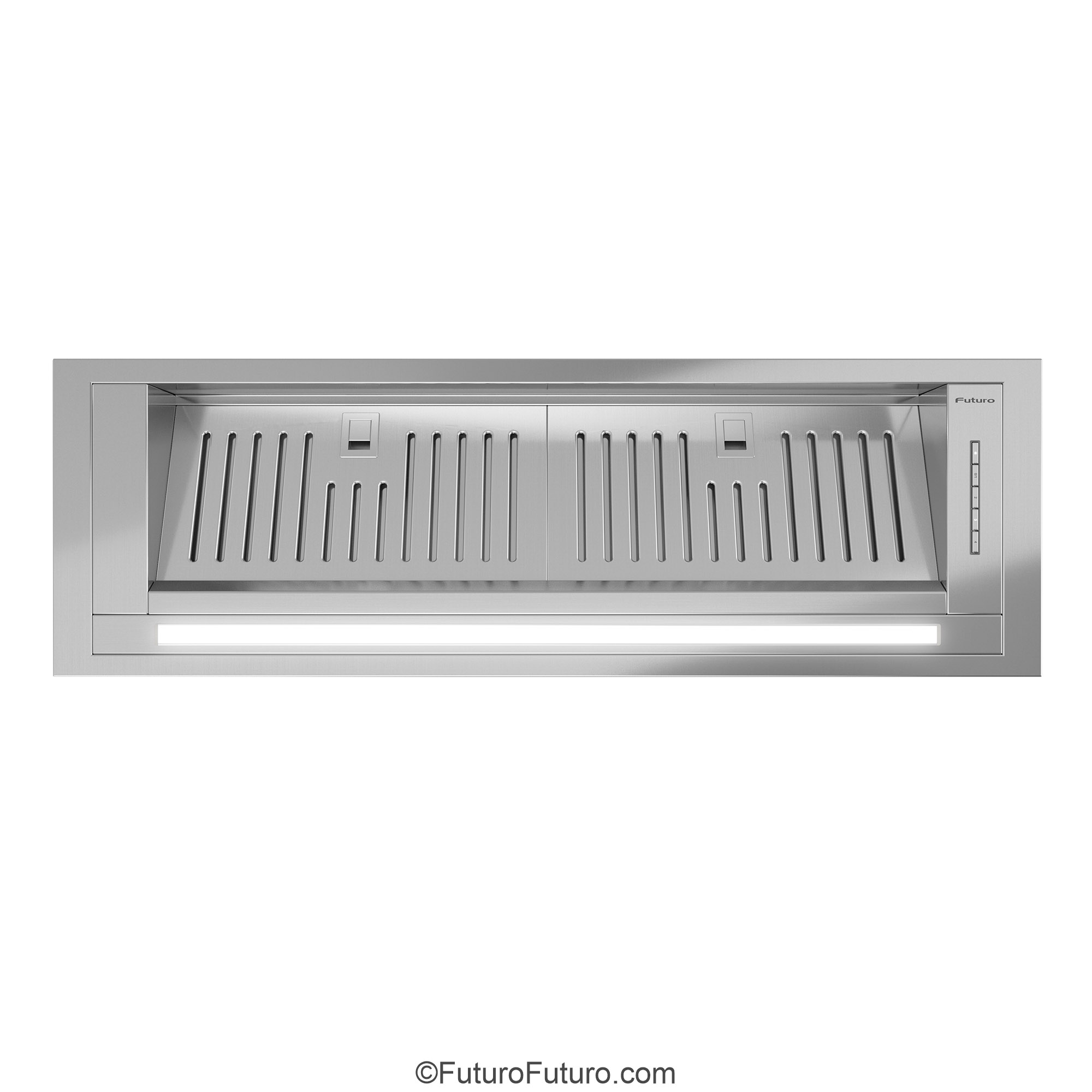

36″ Designo Baffle Insert Range Hood

SKU: WL36DESIGNO-BAF

In stock

Free, Same-day shipping

Model Name:

36″ Designo Baffle Insert Range Hood

Name: 36″ Designo Baffle Insert Range Hood
SKU: WL36DESIGNO-BAF
Availability: InStock

SKU: WL36DESIGNO-BAF

In stock

Free, Same-day shipping

Powerful 36-inch stainless steel under-cabinet range hood with 940 CFM suction, baffle filters, and quiet Italian performance. . . . View more

Specification

Mounting Type
In-Cabinet / Under-Cabinet Mount
Width
34 1/4″
Depth
11″
Height
13″
Height Above Cooktop
26″ - 30″ for best performance
Color / Finish
Stainless Steel
Design
Modern
Materials
Stainless Steel
Lighting Type
Dynamic LED light (2700K-6000K)
# of Lights
1x full-width LED light strip
# of Speeds
4

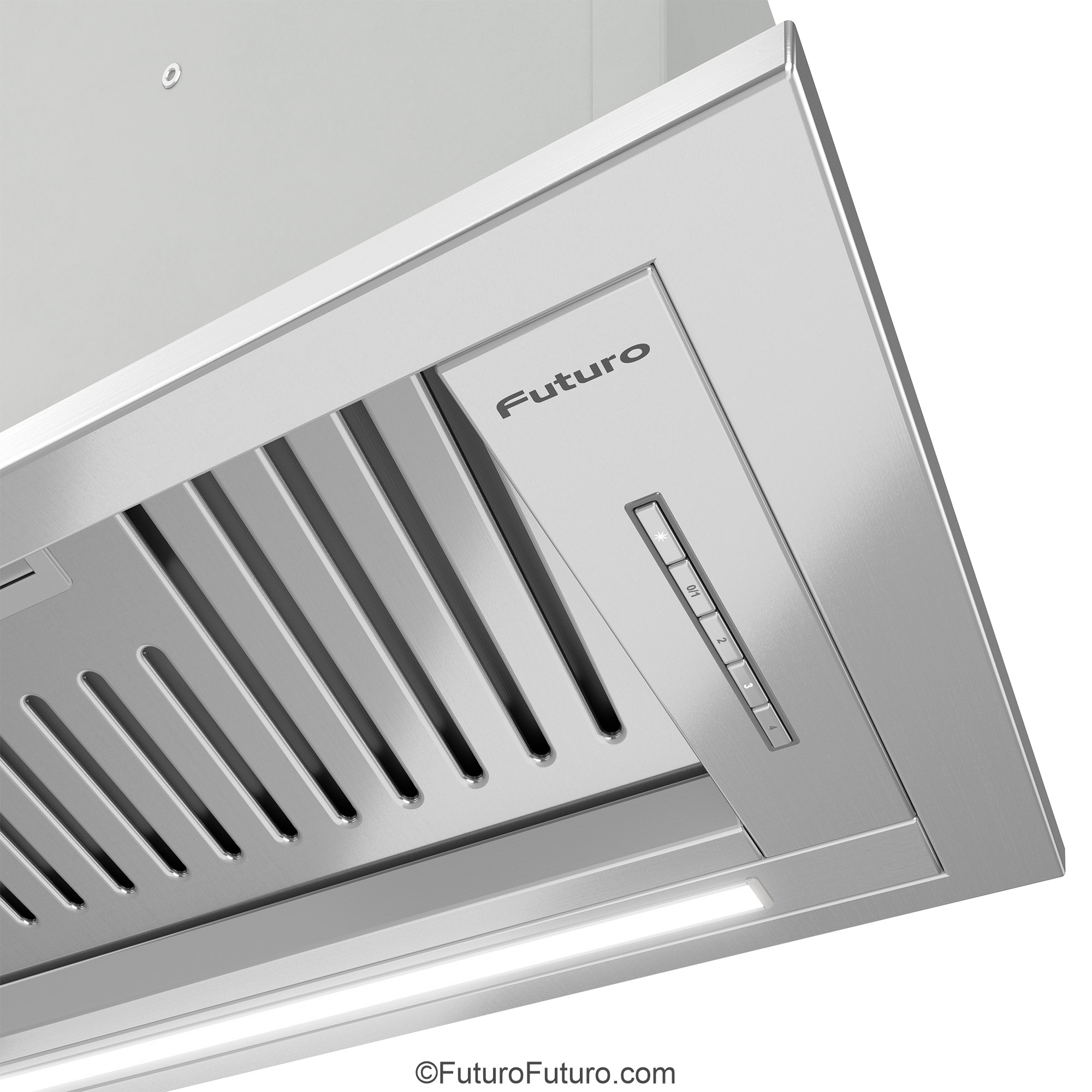

Control Panel Type
Electronic, illuminated control panel. Wireless Remote Control (INCLUDED)
Filter Type
Commercial Baffle (x 2)
Blower Type
Internal Whisper-Quiet tangential (INCLUDED)
Noise Level
0.5 - 3.2 sones

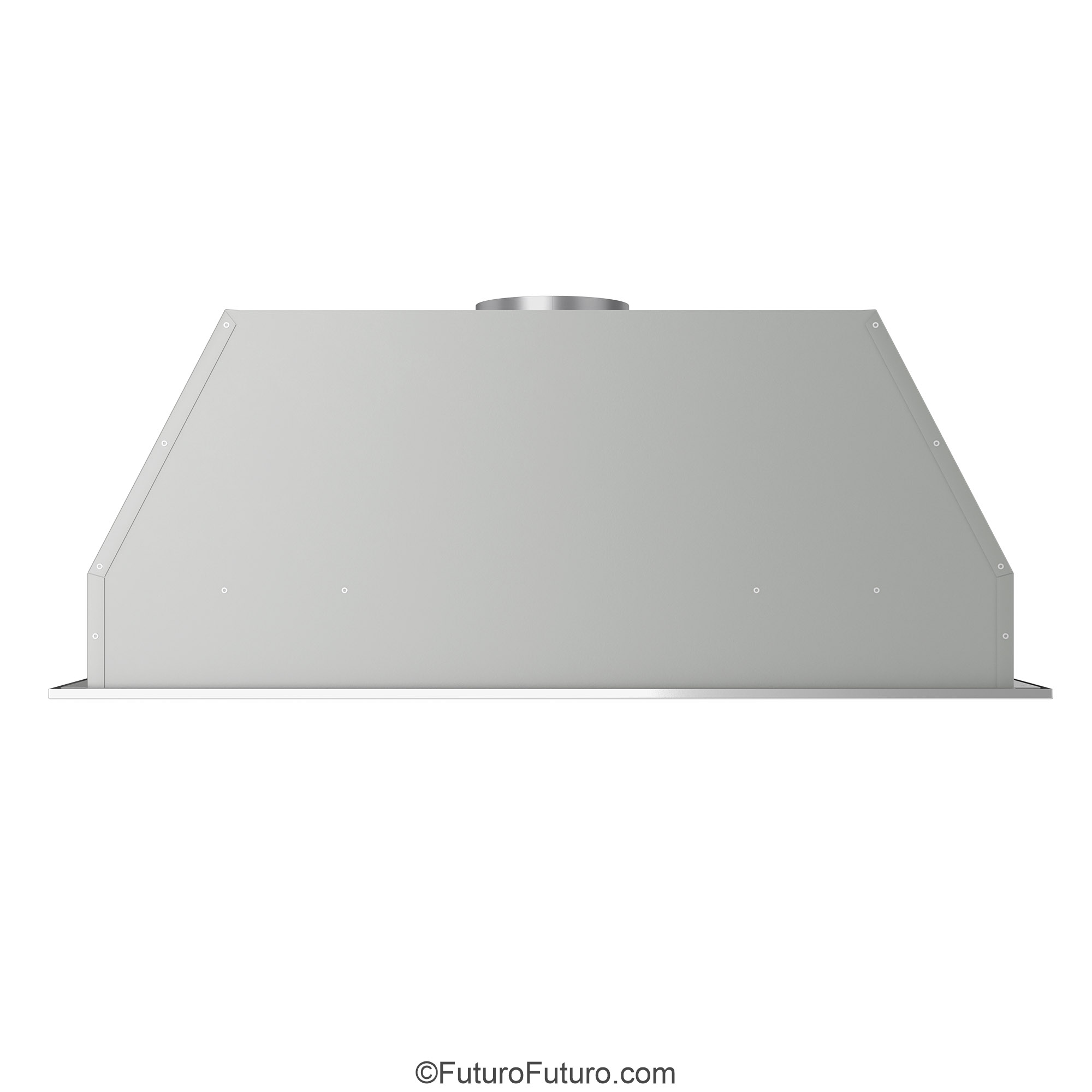

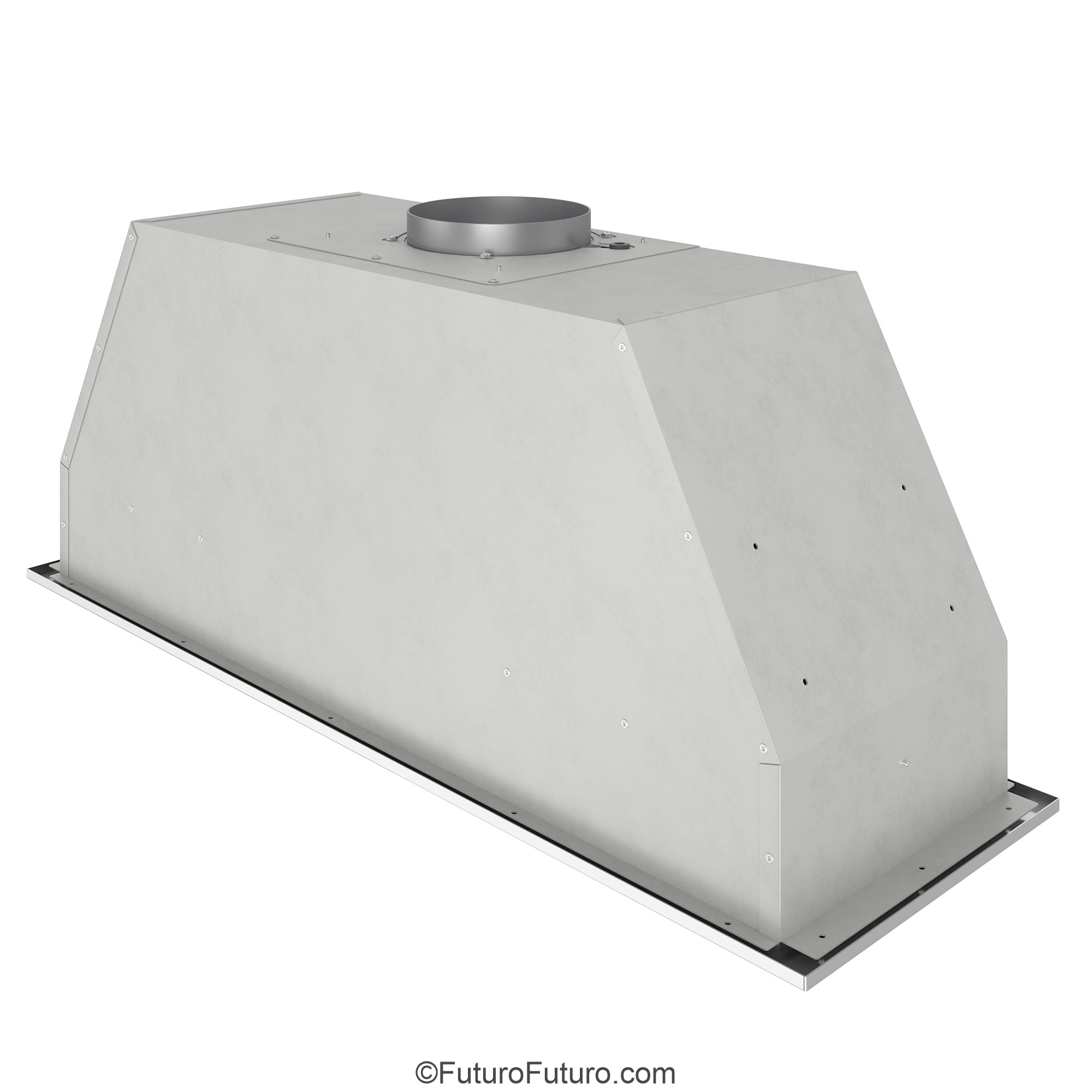

Duct Size
6″ (rigid, round or equivalent)
Exhaust Type
Ducted or Ductless
Airflow
150-940 CFM. CFM can be reduced upon customer request, to accommodate local building code requirements.
Power Requirements
US Standard 3-pin plug, 110-120 Volts, 60 Hz, 3 Amp
Certifications
UL, CSA Listed for USA and Canada
Warranty
1-year US standard + 2-year parts
Country of Production
Made in Italy

Description

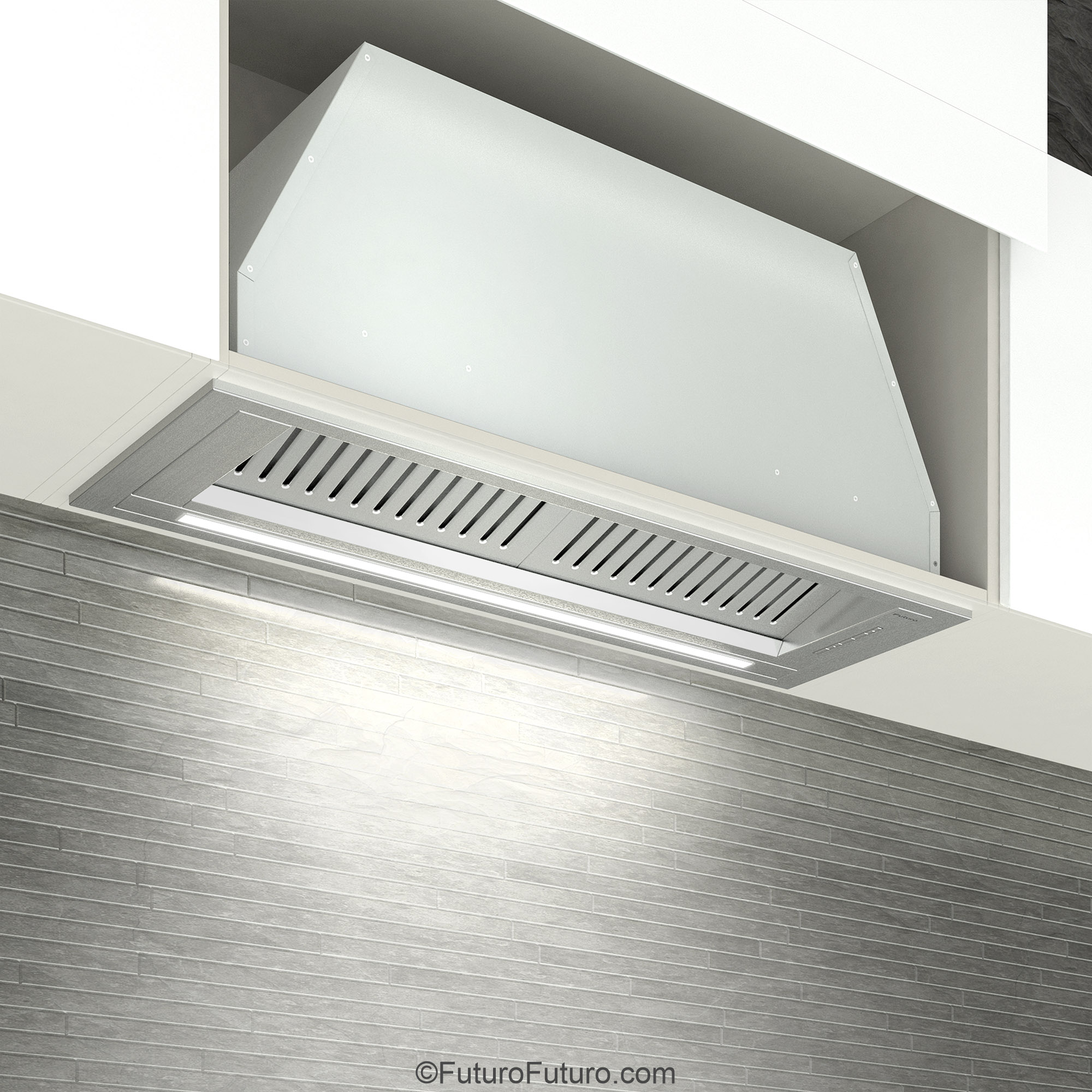

The Futuro Futuro 36-inch Designo Baffle Insert Under-Cabinet Range Hood brings together Italian craftsmanship, powerful performance, and minimalist elegance for the modern kitchen. Designed to be seamlessly built into your cabinetry, it delivers high-end ventilation with a sleek, unobtrusive aesthetic.

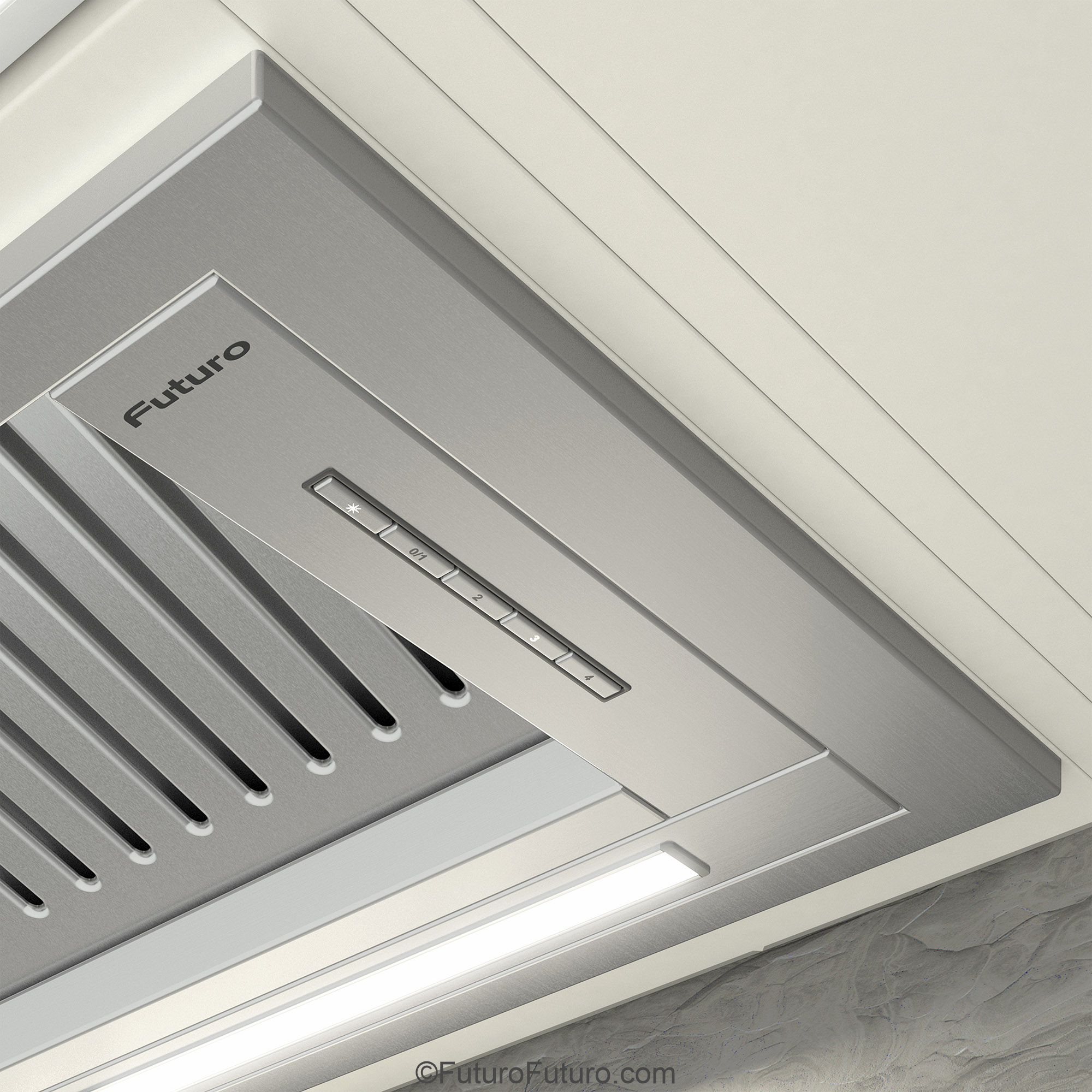

Crafted from premium AISI 304 stainless steel, this under-cabinet vent hood offers exceptional durability and corrosion resistance while maintaining its beautiful finish for years to come. The high-performance 940 CFM blower handles even the most demanding cooking tasks with ease, quickly capturing grease in the heavy-duty baffle filters, while eliminating smoke and odors completely. A soft-touch electronic control panel provides effortless operation, while energy-efficient LED lighting ensures excellent illumination of your cooktop surface.

Engineered for homeowners who value performance and practicality, the 36-inch Designo Baffle Insert focuses on essential features without unnecessary extras. Unlike the Slide Insert model, which does not include adjustable lighting, the Designo Baffle model offers a dynamic LED light strip with adjustable color and brightness for any mood.

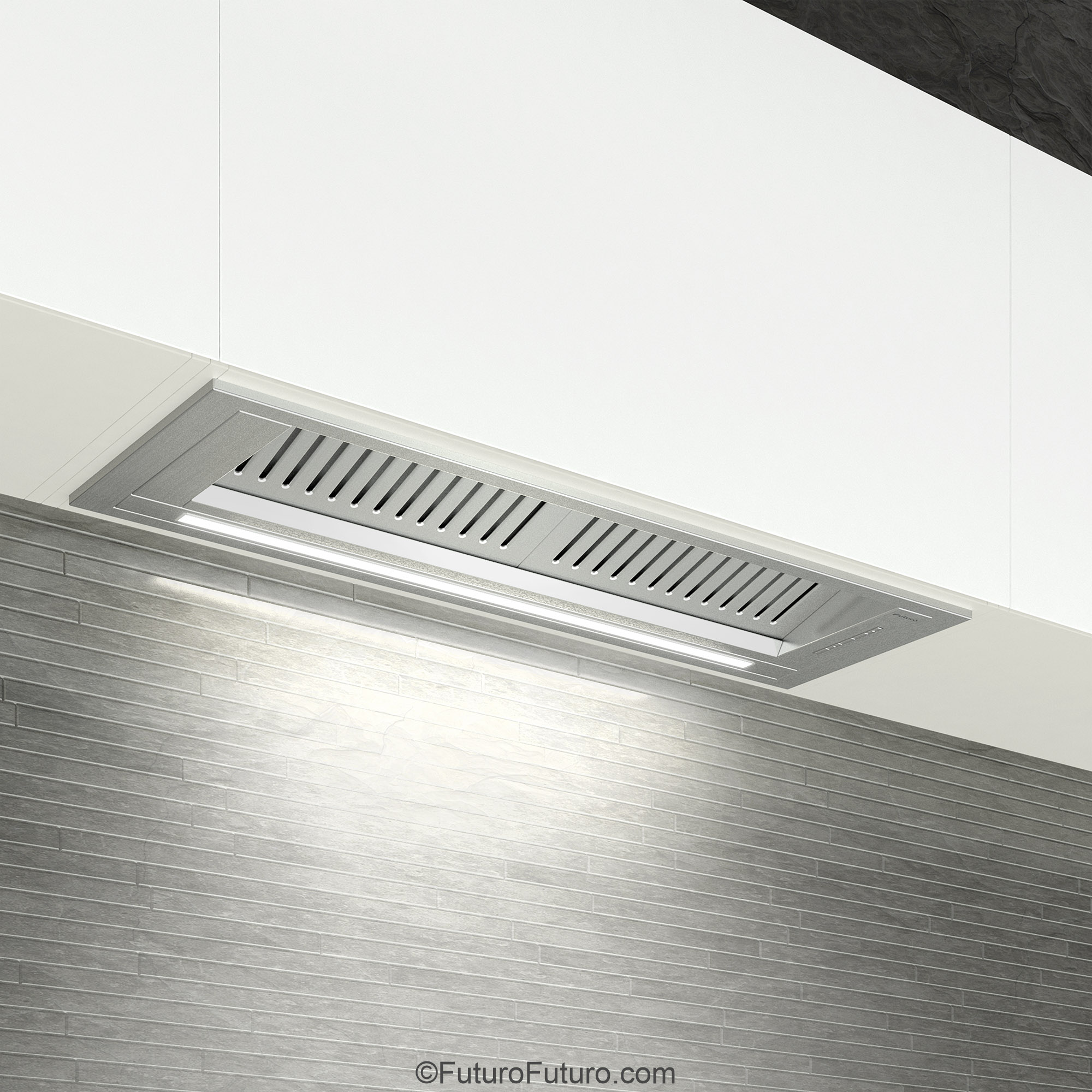

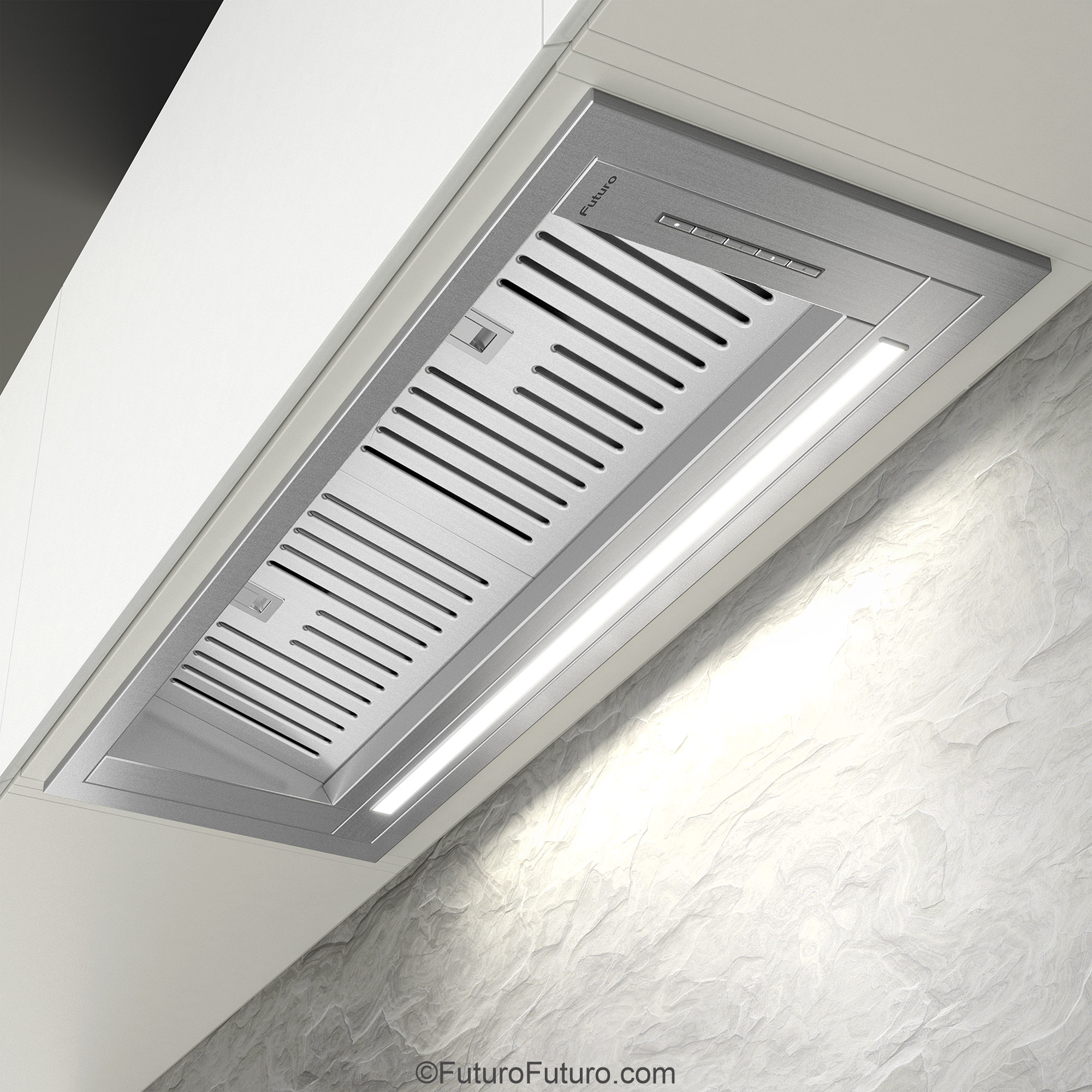

This model is ideal for kitchens needing a ducted or ductless under-cabinet range hood with professional power and a refined, built-in look. Installation is straightforward, and maintenance is simple with dishwasher-safe baffle grease filters and easy-to-access internal components.

Backed by years of Italian engineering experience, the Futuro Futuro 36-inch Designo Baffle Insert delivers professional-level performance, quiet operation, and elegant design — all crafted in Italy.

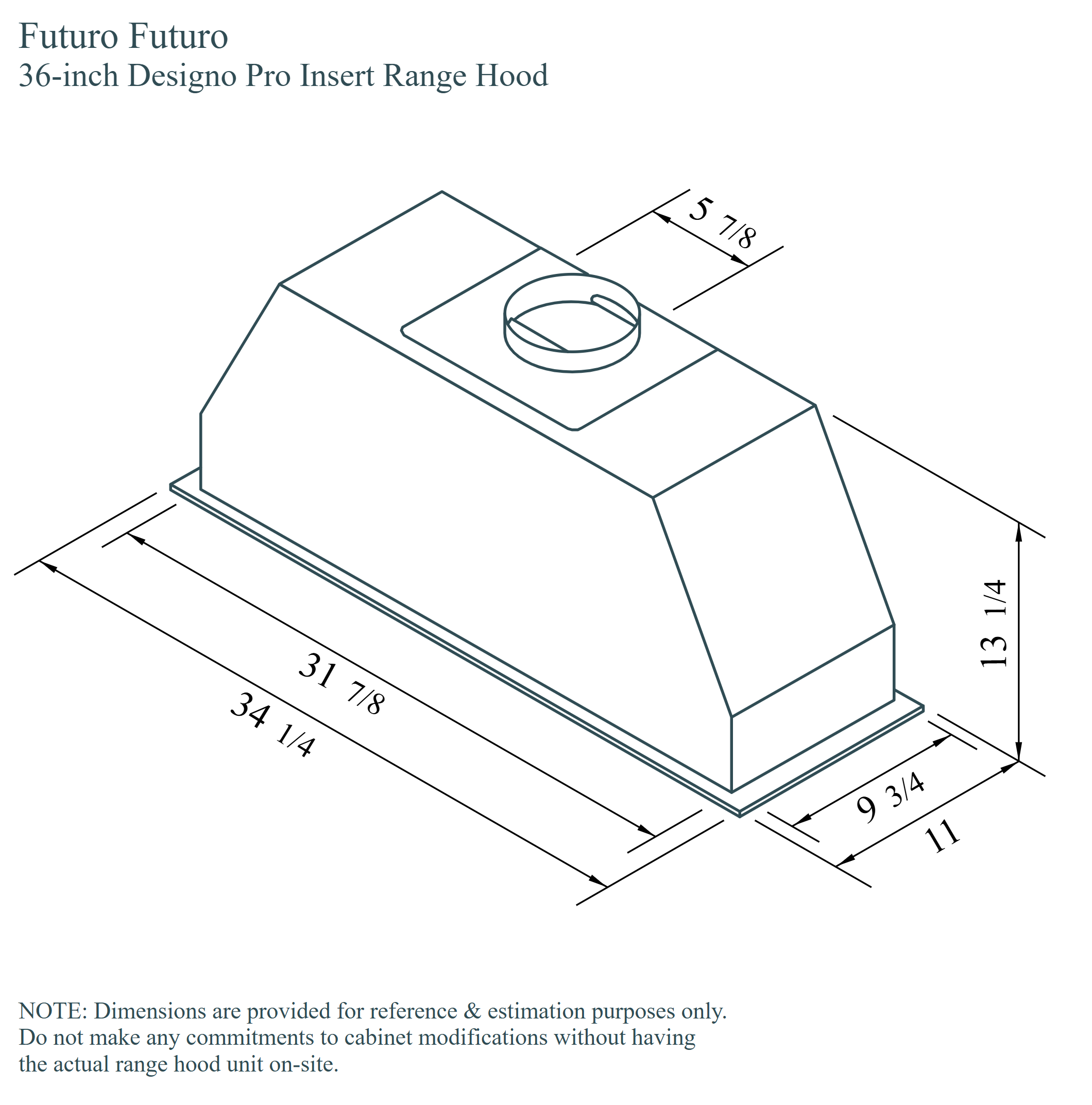

See dimensions 36″ Designo Baffle Insert Range Hood
